Product Description

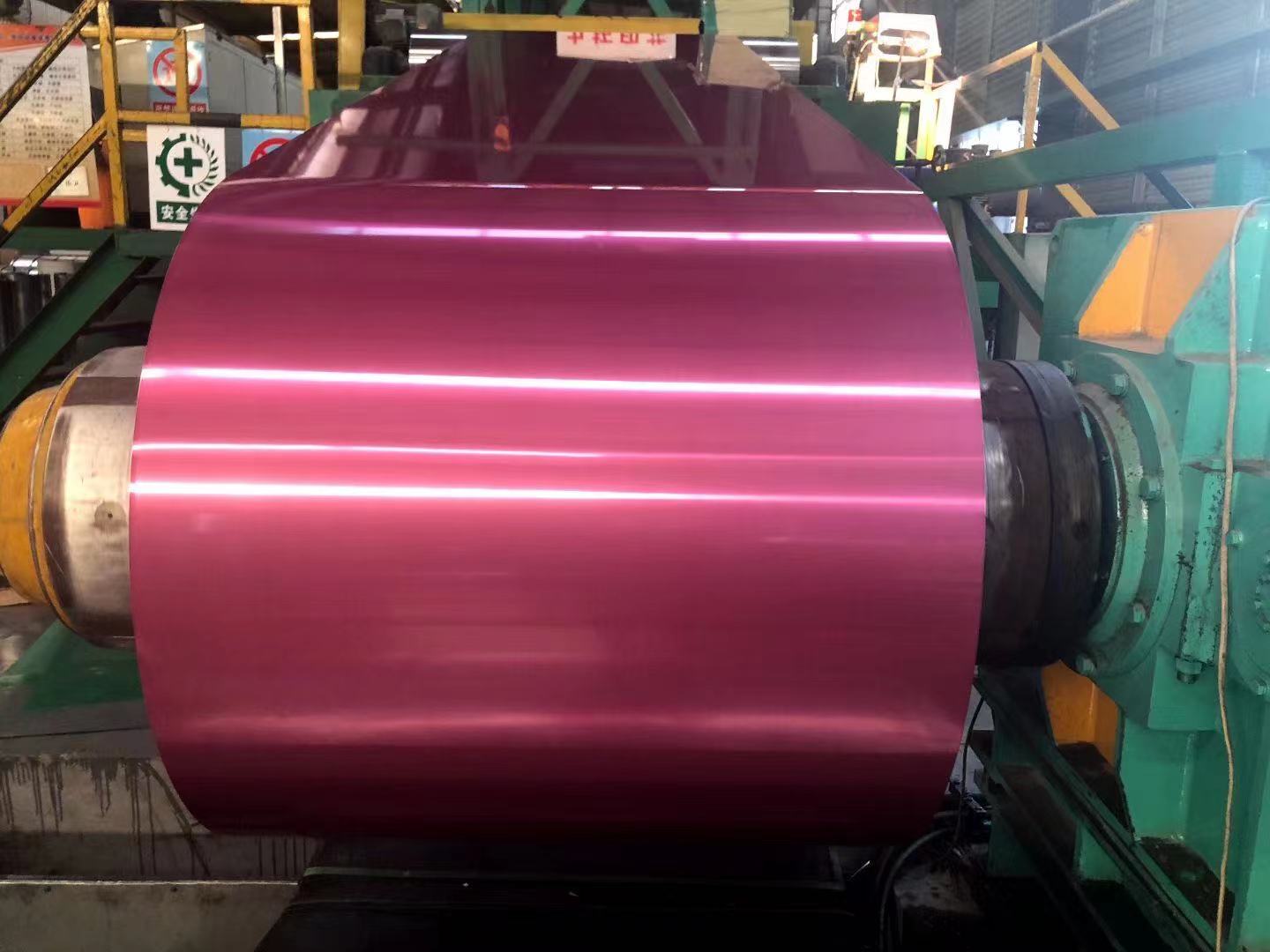

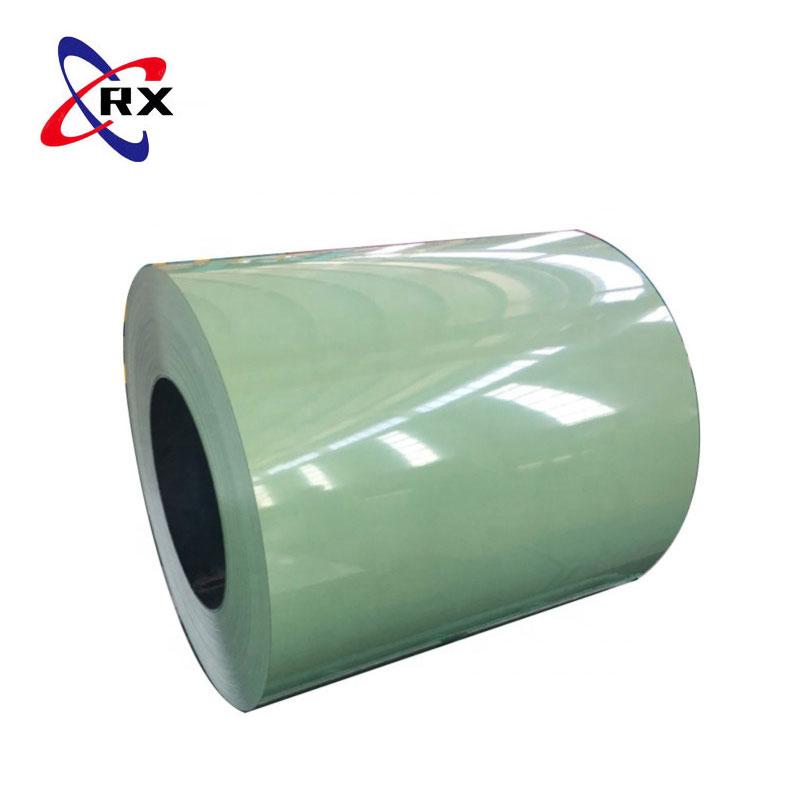

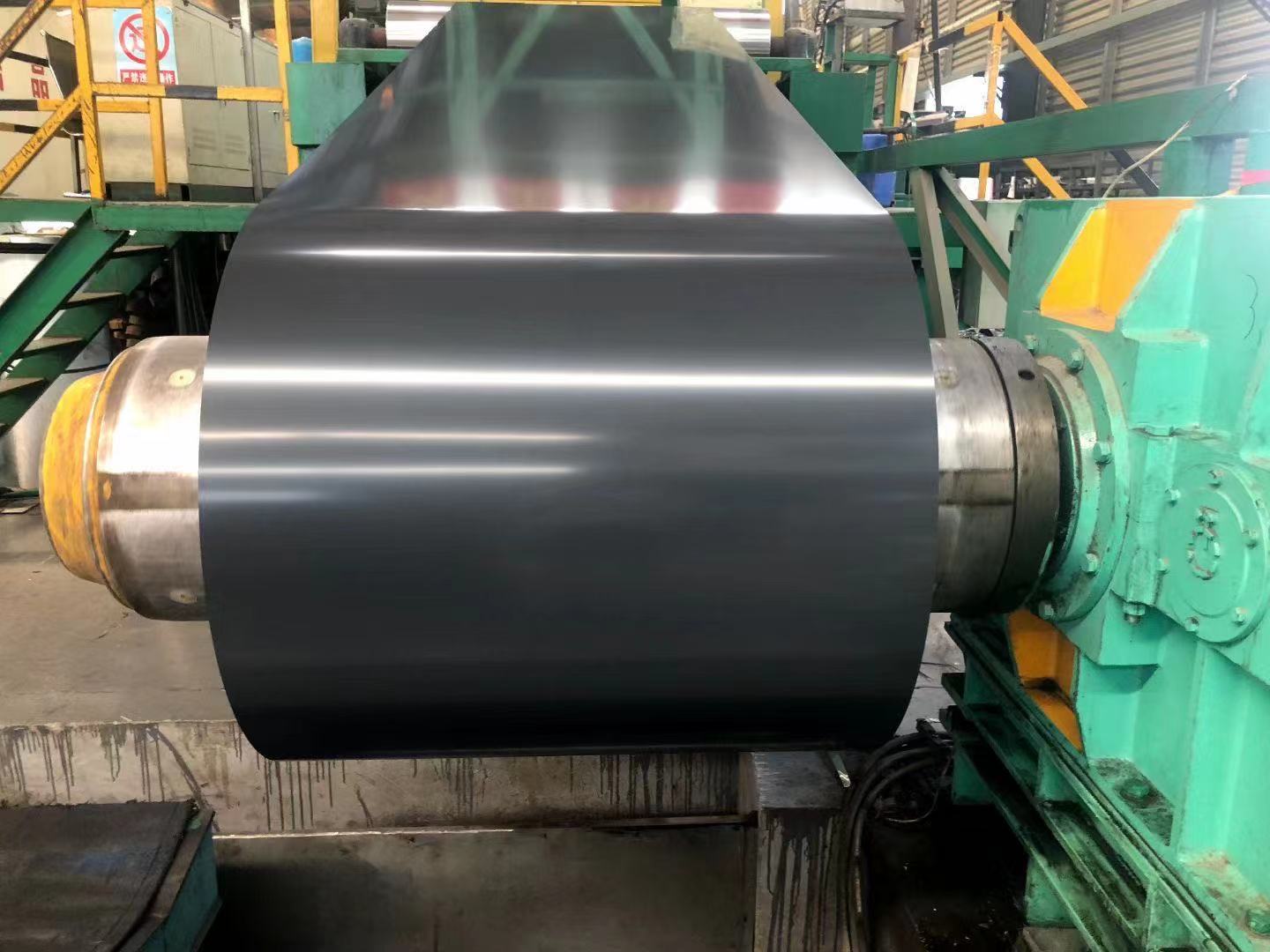

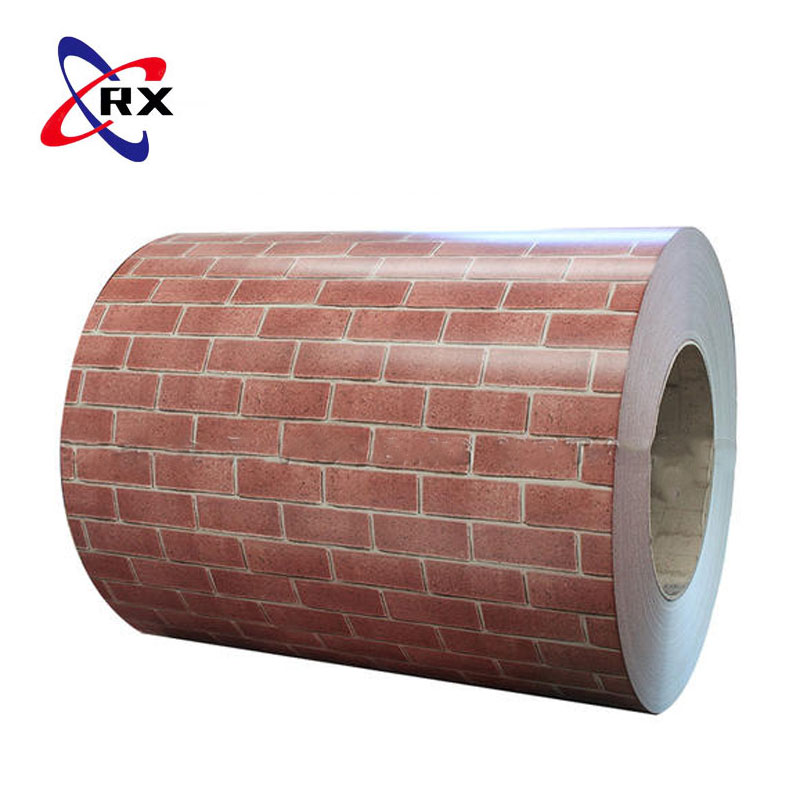

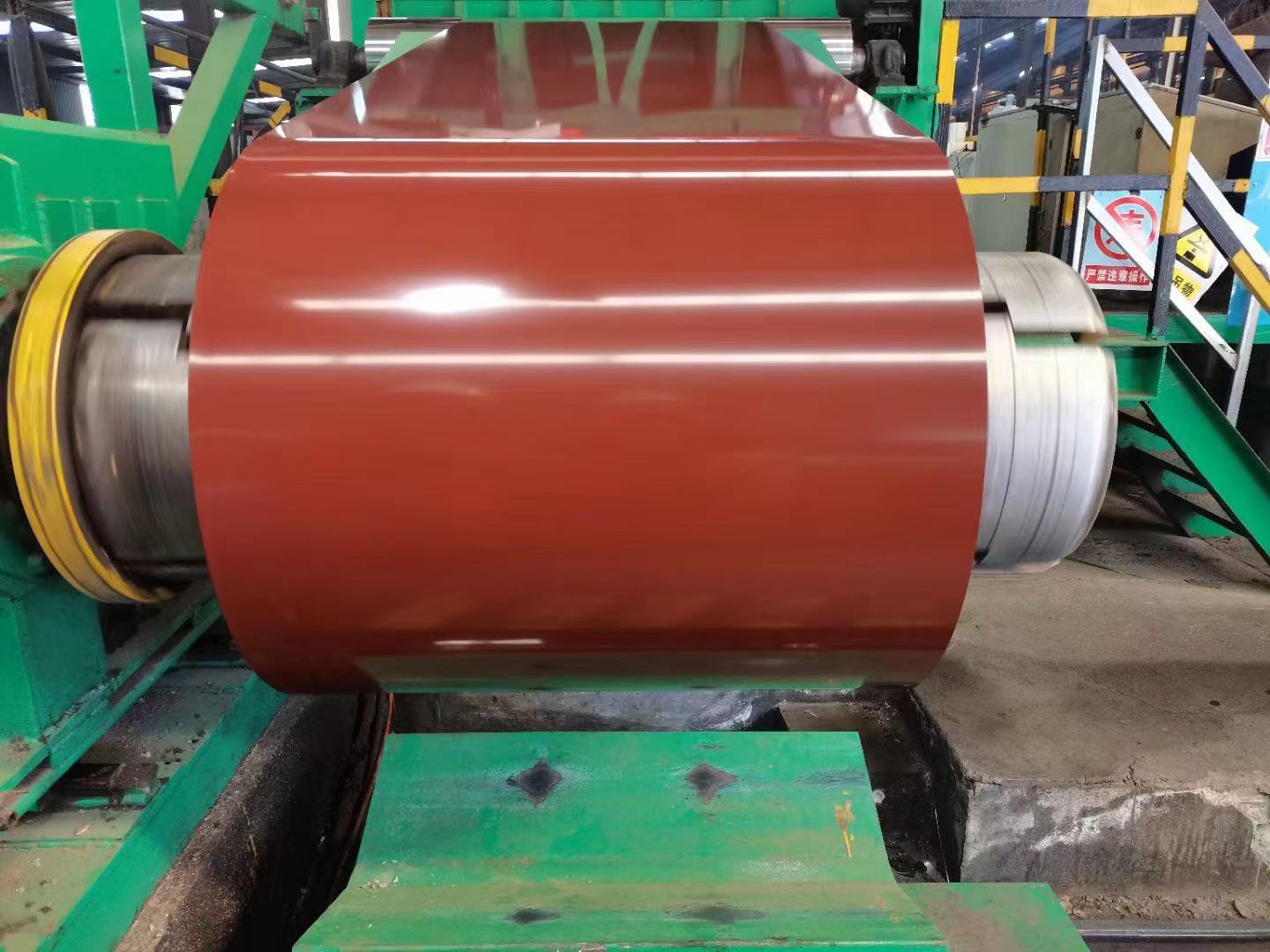

Color coated galvanized steel coil is based on hot-dip galvanized sheets, hot-dip galvanized sheets, electro-galvanized sheets, etc. After surface pretreatment (chemical degreasing and chemical conversion treatment), one or more layers of organic coatings are applied to the surface, and then The product is baked and cured. It is named after the colored steel coil coated with various organic coatings of different colors, referred to as color coated galvanized steel coil.
Specification
| product name | Factory Price Color Coated Galvanized Steel Coil |
| Thickness | 0.125-2.0 mm |
| Width | 600-1500 mm |
| Coil ID | 508 / 610MM |
| Coil Weight | 3-8 Tons |
| Type Of Substruate | Hot dipped galvanized steel coil,galvalume steel coil,cold rolled steel |
| Zinc Coating | 30-275G/M2 |
| Paint Top | 15 - 35 Microns |
| Paint Back | 5 - 35 Microns |
| Coating Types | Top paint:PVDF,HDP,SMP,PE,PU |
| Primer paint:Polyurethane,Epoxy,PE | |
| Back paint:Epoxy,Modified polyester | |
| Color | All RAL color code |
| Standard | ASTM-A653; JIS G3302; EN10147;etc |
| Payment Terms | T/T, LC |
| Delivery time | 7-15days |
| Hardness | Soft hard(HRB60),medium hard(HRB60-85),full hard(HRB85-95) |
| Surface Treatment | Chromated/Non-Chromated, Oiled/Non-oiled, Skin pass |
Supply Ability
10000 Ton/Tons per Week
Product Application
The purpose of color coated galvanized steel coil mainly includes:
1. In the construction industry, roofs, roof structures, rolling shutter doors, kiosks, shutters, gatekeepers, street waiting rooms, ventilation ducts, etc;
2. Furniture industry, refrigerator, air conditioner, electronic stove, washing machine shell, oil stove, etc;
3. Transportation industry, automobile ceiling, back plate, coaming, car shell, tractor, ship compartment board, etc. Among these uses, steel structure workshop, composite plate workshop, and color steel tile factory are more used.

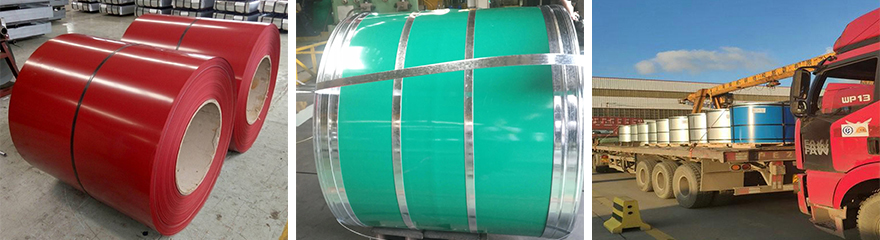

Packaging And Delivery
Packaging Details
wooden boxes package,pvc package and other Standard seaworthy package
Port
shanghai/tianjin/qingdao
Lead Time:
Quantity(Tons) | 1 - 10000 | >10000 |
Est. Time(days) | 7 | To be negotiated |
